DELL PRO DOCK - WD25TB4 (180W-USBC, TB4, HDMI 2.1, DP1.4, RJ45-2.5G)

DELL PRO DOCK - WD25TB4 (180W-USBC, TB4, HDMI 2.1, DP1.4, RJ45-2.5G)

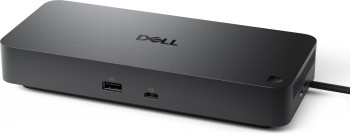

Dell Pro Thunderbolt 4 Dock WD25TB4

The Dell Pro Thunderbolt 4 Dock WD25TB4 is a powerful, manageable, and responsibly designed docking solution for modern hybrid work environments. It supports up to four 4K displays and delivers up to 130 W power delivery for Dell Pro Premium and Dell Pro Max laptops (96 W for non-Dell systems). Two Thunderbolt 4 ports, 2.5 GbE, and extensive USB connectivity ensure seamless productivity.

WD25TB4 belongs to the world’s most manageable commercial docking family. Intel AMT (vPro) management over Thunderbolt, MAC Address Pass-Through, PXE Boot, WOL, and Dock Power Button Sync streamline IT operations. The Dell Device Management Console enables automated or scheduled firmware updates, version control, and inventory tracking.

The dock is responsibly built: its chassis contains at least 65% post-consumer recycled plastic, and the packaging is made from 100% recycled or renewable materials. The integrated USB-C cable can be routed to either the left or right side for cleaner cable management. The enhanced, durable USB-C connector ensures long-term reliability.

• Interface: Thunderbolt 4 (USB-C)
• Power adapter: 180 W AC
• Power Delivery (PD): up to 130 W (Dell systems), up to 96 W (non-Dell)

• 4 × QHD (2560 × 1440) @ 60 Hz
• 3 × WQHD (3440 × 1440) @ 60 Hz
• 2 × 4K (3840 × 2160) @ 60 Hz
• 1 × 5K (5120 × 2160) @ 60 Hz

• 4 × 4K (3840 × 2160) @ 60 Hz
• 3 × 4K (3840 × 2160) @ 60 Hz
• 2 × 6K (6144 × 3456) @ 60 Hz
• 1 × 8K (7680 × 4320) @ 60 Hz

• 2 × Thunderbolt 4 (15 W PowerShare, operates even without a PC)
• 2 × DisplayPort 1.4
• 1 × HDMI 2.1
• 1 × USB-C 3.2 Gen 2 (10 Gbps, data only)
• 1 × USB-C 3.2 Gen 2 Multi-Function DisplayPort 1.4 (PowerShare 7.5 W)
• 4 × USB-A 3.2 Gen 2 (10 Gbps, PowerShare 4.5 W)
• 1 × USB-C 3.2 Gen 2 (10 Gbps, PowerShare 15 W)
• 1 × RJ-45 2.5 Gb Ethernet
• Power In (180 W)

• Intel AMT (vPro) over Thunderbolt
• MAC Address Pass-Through, PXE Boot, Wake-On-LAN, Dock Power Button Sync, WLAN?LAN switching
• Kernel DMA Protection
• Dell Device Management Console (automatic/scheduled firmware updates, version maintenance/downgrade, inventory and status)
• Dell Firmware Utility, Dell Display and Peripheral Manager, Dell Command Update

• Windows 10 & 11
• Ubuntu 24.04
• RHEL 9.6+
• ChromeOS 137+
• macOS

• 205 × 90 × 35.25 mm
• Weight: 567 g (without power adapter)
• Cable length: 0.83 m; can be routed to the left or right side to match desk layout
• Security locks: Kensington & wedge-type
• LED indicators: power button & RJ-45
• Thunderbolt 4 certified
• Made with at least 65% PCR recycled plastic; packaging 100% recyclable or renewable

• 3-year limited hardware warranty (Advanced Exchange)
• Optional 4- or 5-year extended warranty
• Includes: dock, 180 W power adapter and power cable, Quick Start Guide, and safety/environmental/regulatory information
